Quick Details
Type:Coating Production Line SubstrateSteel Condition:New Machine Type:Powder spray booth, Spray Booths Video outgoing-inspection:Provided Machinery Test Report:Provided Marketing Type:Ordinary Product Warranty of core components:1 Year Core Components:PLC, Engine Coating:Powder Coating Place of Origin:Zhejiang, China Brand Name:COLO Voltage:380V Power:3.5KW Dimension(L*W*H):2800x1150x1700mm | Warranty:1 Year Key Selling Points:Easy to Operate Applicable Industries:Machinery Repair Shops, Manufacturing Plant Showroom Location:None Weight (KG):400 Name:Powder Coating Booth Coating booth Frequency:50-60Hz Coating booth Power supply:Electric Series:powder coating equipment line Use for:Metal or alloywheels Facility:powder coating equipment Recovery:Cartridge Filter Filter cleaning system:Pneumatic After Warranty Service:Video technical support |
Supply Ability
Supply Ability:10 Piece/Pieces per Month as per request
Packaging & Delivery
Packaging Details
Cartridge Recovery Powder Coating Booth carton with foam
Port:shanghai/ ningbo port
Product Description

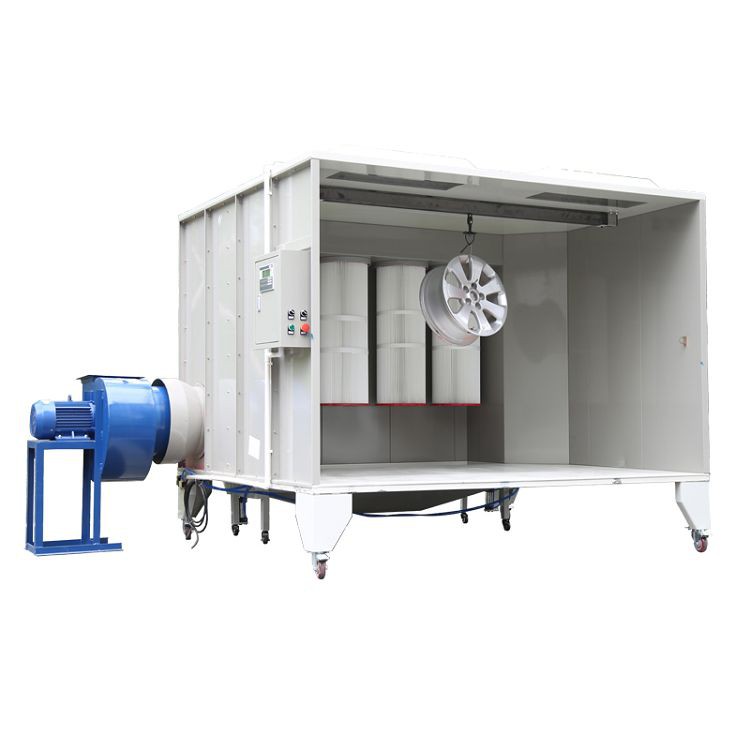

Cartridge Recovery Powder Coating Booth
The powder coating booth is ideal for small-to-medium-sized batch powder applications, an integrated powder collection module includes high precision cartridge filters along with pulsing cleaning system, creating clean and bright finishing environment.
 |  |

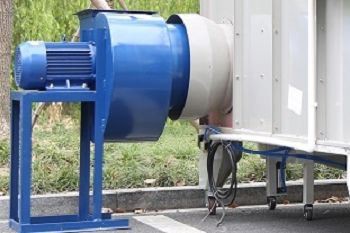

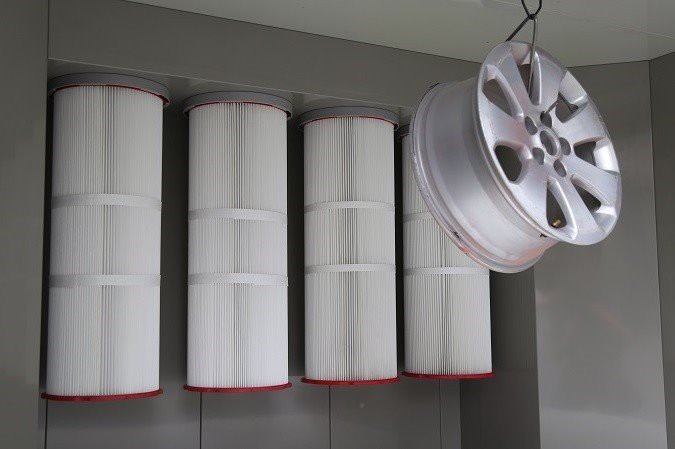

High Precision Filters Incorporates 4 pcs cartridge-filter capturing excess powders efficiently to keep environment clean. | Fan Motor Clean shop air is drawn through a powerful centrifugal fan into the booth and passes across high-quality filters before recirculating it back into the booth area |
 |  |

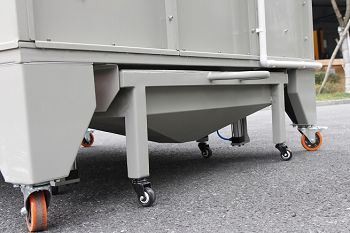

PLC Controller Easy-to-use PLC operation panel allows to start/stop exhaust, set pulse-jet time & interval, etc | Powder Recovery Hopper The filtered powder is then discharged into a recovery hopper beneath the unit which can be taken away for emptying and cleaning. |
Specification
Model | COLO-S-2315 |
Operating Dimensions | Width2300 * Depth1500 * Heght1500mm |
Overall dimensions | Width2550*Depth2100*Heght2240mm |
Weight | 580kg |
Power Supply | 220V/380V, 3Phase, 50-60HZ |
Fan Power | 4kw |
Filter Count | 4 pcs, Quick-release Type |
Filter Material | Polyester |
Filter Cleaning | Pneumatic |
Air Consumption | 6600m^3/h |
Application

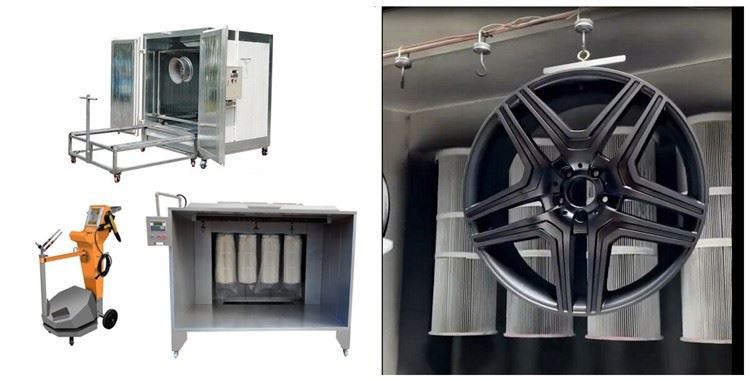

Suitable for surface finishing of metal parts such as alloy wheels, including powder coating machines, powder coating booth and powder curing oven
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Hot Tags: powder coating spray booth, China, suppliers, manufacturers, factory, wholesale, cheap, Powder Coating Machine, hyper smooth powder coating gun, manual powder spray gun nozzle, Mini Powder Coating Equipment, Portable Powder Coating Oven, Manual Powder Coating Control Unit
Our powder coating machine small stands out in the market due to its impeccable specifications and features. It operates at a voltage of 380V with a power rating of 3, making it a powerhouse for any coating operation. The machine is brand new and constructed with high-quality steel substrates, guaranteeing durability and excellent coat adherence. Whether you are dealing with intricate designs or large-scale productions, this spray booth is designed to handle all with ease, ensuring a seamless and uniform coat every time. Furthermore, the OUNAIKE powder coating machine small comes with a comprehensive 1-year warranty on all core components, affirming our commitment to quality and customer satisfaction. We also provide video outgoing-inspection and a detailed machinery test report to ensure that our product arrives in perfect working condition. Whether you are a small business looking to enhance your operations or a large enterprise aiming for superior product finishes, our compact powder coating machine small is the ideal choice for achieving optimal results in your coating production line.
