2. Different sizes is customized made.
3. Quick delivery and response within 12 months.
Quick Details
|
Applicable Industries:Manufacturing Plant, Retail, Printing Shops, Construction works , Energy & Mining, industry Video outgoing-inspection:Provided Machinery Test Report:Provided Warranty of core components:1 Year Core Components:air filter cartridge Condition:New Efficiency:99.9% Construction:Cartridge Filter Place of Origin:Henan, China Brand Name:Huahang Dimension(L*W*H):660 mm Height X 324mm OD Weight:2.2 kg Warranty:1 Year Filter media:Polyester fibers,micronfiber |
Filration rating:3-100 micron Type:pleated air filter cartridge Advantages:Larger filter area,good Air Permeability Usage:Machines & industrial profiles Measurements:660 mm Height X 324mm OD Trade terms:EXW,FOB,CFR Payment:Pay the full amount in advance by T/T/50% pre-payment After Warranty Service:Online support Local Service Location:None Showroom Location:None Marketing Type:Ordinary Product After-sales Service Provided:Online support Certification:ISO9001,CE,SGS |

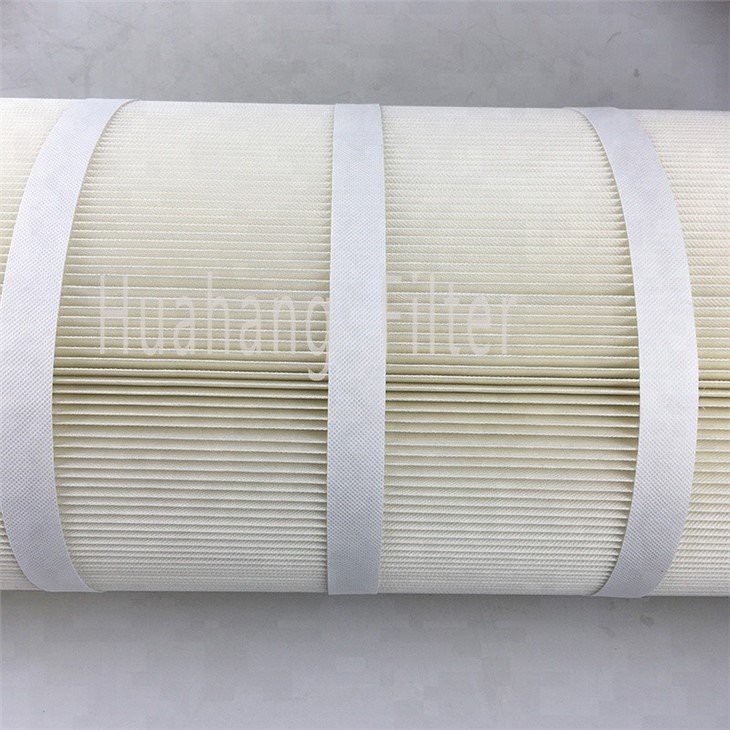

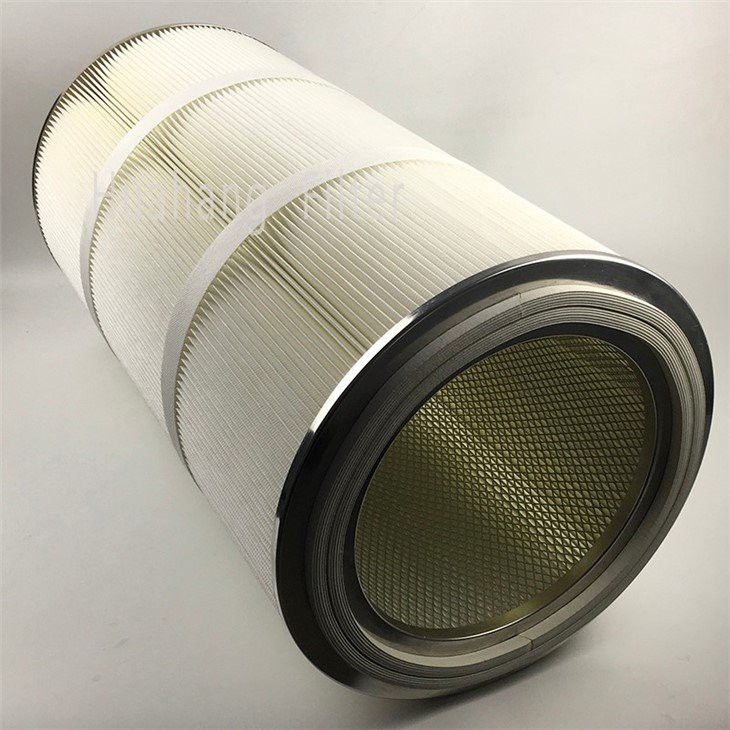

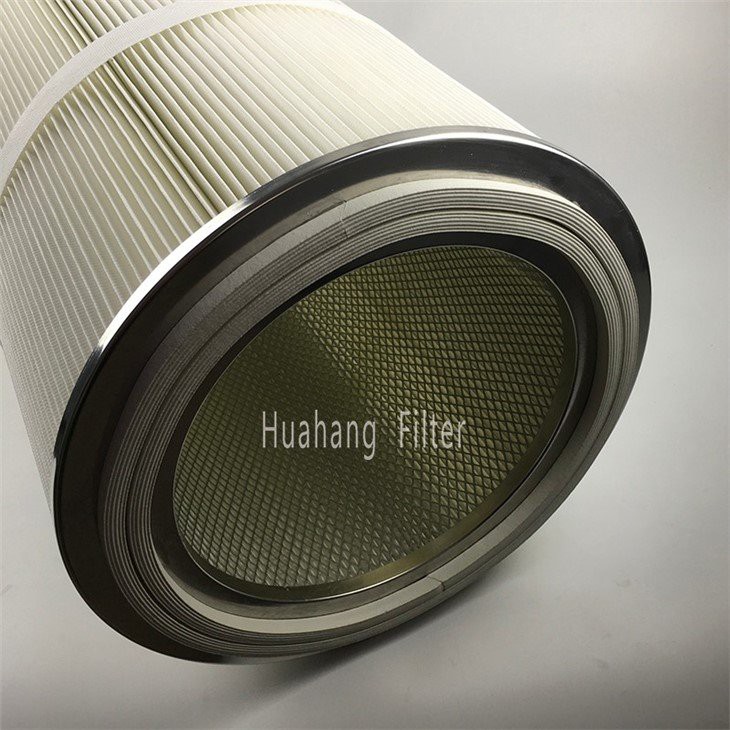

Air cartridge filter for powder coating/cartridge filter fit a reverse pulse cleaning system
Air filter cartridge--------Introduction
| Features and Advantages |
1) Imported long fiber polyester filter media,fiber interwoven,evenly distributed. 2) Filter material surface do waterproof and oil processing. 3) Good abrasion resistance,and the capability of withstand airflow pulse inverse blow is better than traditional filter media. 4) Smooth filter media surface,not sticky. 5) Excellent chemical resistance. 6) Electro-galvanized / stainless steel cover, central skeleton. 7) Professional sealing obturator elastic neoprene. 8) Good filter material stiffness,can be repeated washed. 9) Operating temperature ≤ 135 ° C. 10) Greatly increase the effective filtration area. 11) Ensure a low steady differential pressure, improve the circulation of air flow. 12) Small filter cartridge element, easy to install. 13) Especially suitable for large dust concentration industry. |
| Specifications |
1. Type: Pleated cartridge filter 2. Size: 660mmheight X324diameter 3. Filter media: Microfiber 4. Efficiency: 99.99% 5. Inside frame and outer frame:metal mesh 6. We can make different sizes and precision as your need. |
More dimensions for your choice
| Cartridge Model |
Out diameter |
Internal diameter |
Height measurements |
|
HX/F3266 |
Φ324mm |
Φ213mm |
660mm |
|
HX/F3566 |
Φ352mm |
Φ241mm |
660mm |
|
HX/F3275 |
Φ324mm |
Φ213mm |
750mm |
|
HX/F3288 |
Φ324mm |
Φ213mm |
880mm |
|
HX/F3290 |
Φ324mm |
Φ213mm |
915mm |
All the measurements of the filter can be changed according to your requirement
Application
