Quick Details
|
Type:Powder Coating Oven Substrate:Aluminum Condition:New Machine Type:COLO-1688, Curing oven Video outgoing-inspection:Provided Machinery Test Report:Provided Marketing Type:Hot Product 2019 Warranty of core components:1 Year Core Components:PLC Coating:Powder Coating Place of Origin:Zhejiang, China Brand Name:COLO Voltage:110V/220V, Customized Power:50-60Hz Dimension(L*W*H):1000 x 1600 x 845mm Warranty:1 Year Key Selling Points:Competitive Price |
Applicable Industries:Machinery Repair Shops, Manufacturing Plant, Retail Showroom Location:None Weight (KG):300 Model:COLO-1688 Brand:COLO Temperature stability:< ± 3-5°C Temperature max.:250°C Warm-up time:15-30 min. (180° C) Powder Supply:Electric/ 6.55kw Motor power:0.55kw Ventilation performance:805-1677m3/h Circulation/ Air flow:Vertical,Variable through holes on the walls |
|
Model
|
COLO-1688
|
|
Working size (W*H*D）
|
1000*1600*845 mm
|
|
Overall Size (W*H*D)
|
1400*2200*1100 mm
|
|
Voltage
|
220V/110V (customized), 50-60Hz
|
|
Power supply
|
Electric/ 6.55kw
|
|
Warm-up time
|
15-30 min. (180° C)
|
|
Temperature stability
|
< ± 3-5°C
|
|
Temperature max.
|
250° C
|
Details Images
 |
 |
|
Control Panel An easy-to-use panel to control a reliable heating process. Set heating time, heating temperature, control the work of fan. |

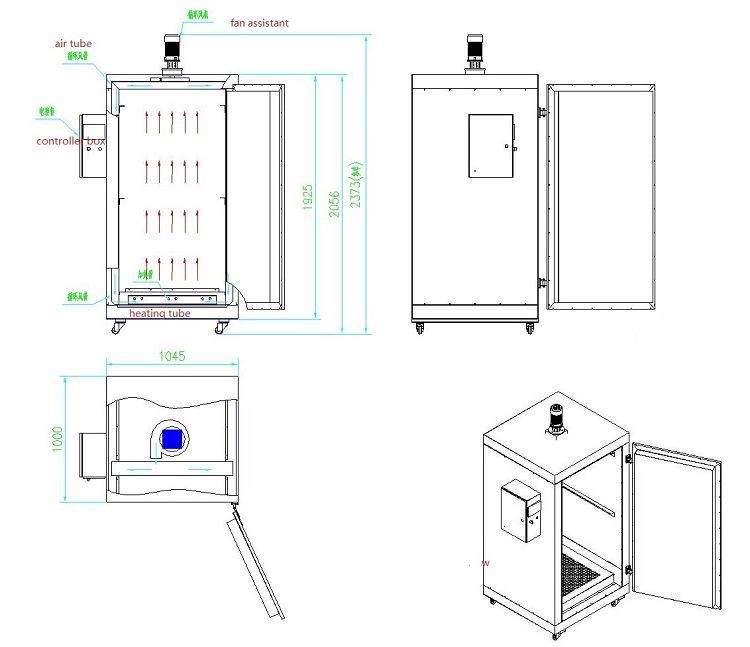

Circulation Fan Installed on the top of oven, saves space. Circles hot air through the entire chamber, ensure even temperature for curing parts. |
 |
 |
|
Heating Element Embedded heating tube under the mesh plat |

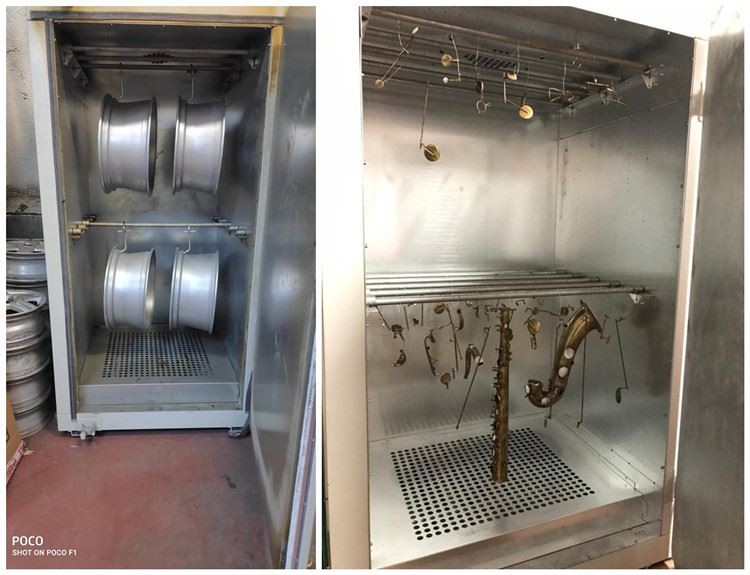

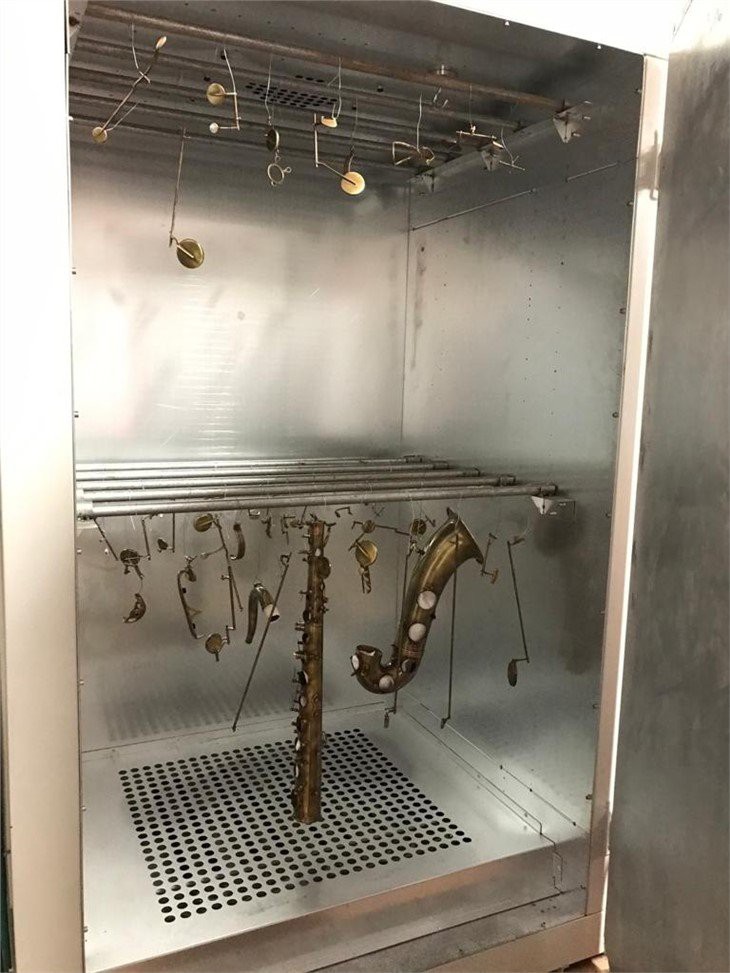

Rails Rails for hanging workparts |
Product packaging
