Electric Powder Coating Oven

Hot selling COLO-1864 powder coating oven heated by electricity, is a simple tool for baking powder-coated objects.

Send Inquiry

Description

Quick Details

Type:Powder curing baking oven

Substrate:Metal

Condition:New

Machine Type:Manual powder coat oven, Curing oven

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Marketing Type:Hot Product 2019

Warranty of core components:1 Year

Core Components:Motor

Coating:Plastic powder

Place of Origin:Zhejiang, China

Brand Name:COLO

Voltage:380V/220V, 380V/220V (Custom Voltage Available)

Power:12kw

Dimension(L*W*H):L*W*H

Warranty:12 Months

Key Selling Points:Competitive Price

Applicable Industries:Building Material Shops, Machinery Repair Shops, Manufacturing Plant

Showroom Location:United States, Argentina, Australia

Weight (KG):1500

Brand:HICOLO

Model:COLO-1864

Name:COLO Manual Powder Curing Furnace Electric Powder Coating Oven

Worksize Dimensions:Width1600 x Height1800 x Depth1400 mm

Overall dimensions:Width1900 x Height2200 x Depth1700 mm

Power supply electric:18 kw

After Warranty Service 1:Video technical support

After Warranty Service 2:Online support

After Warranty Service 3:Spare parts

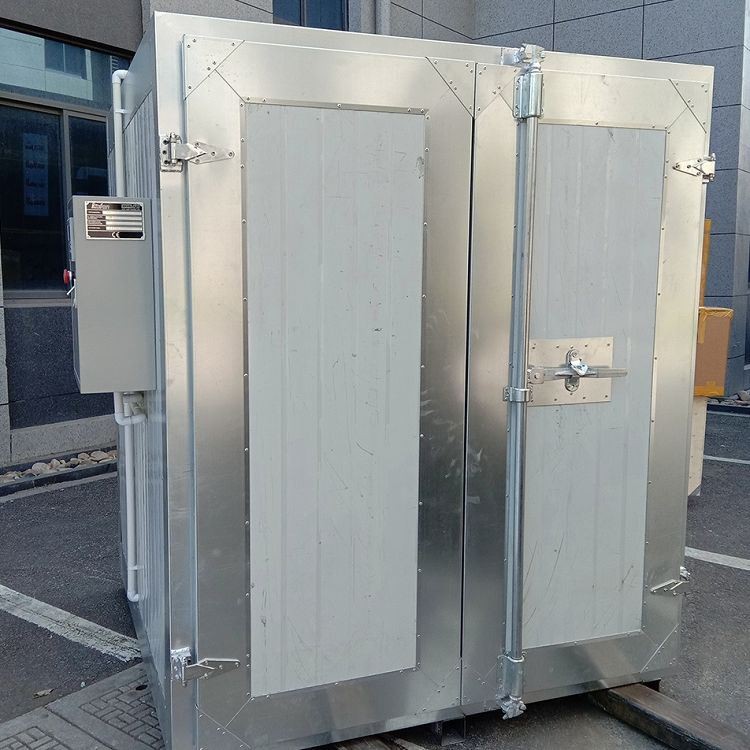

2(001)

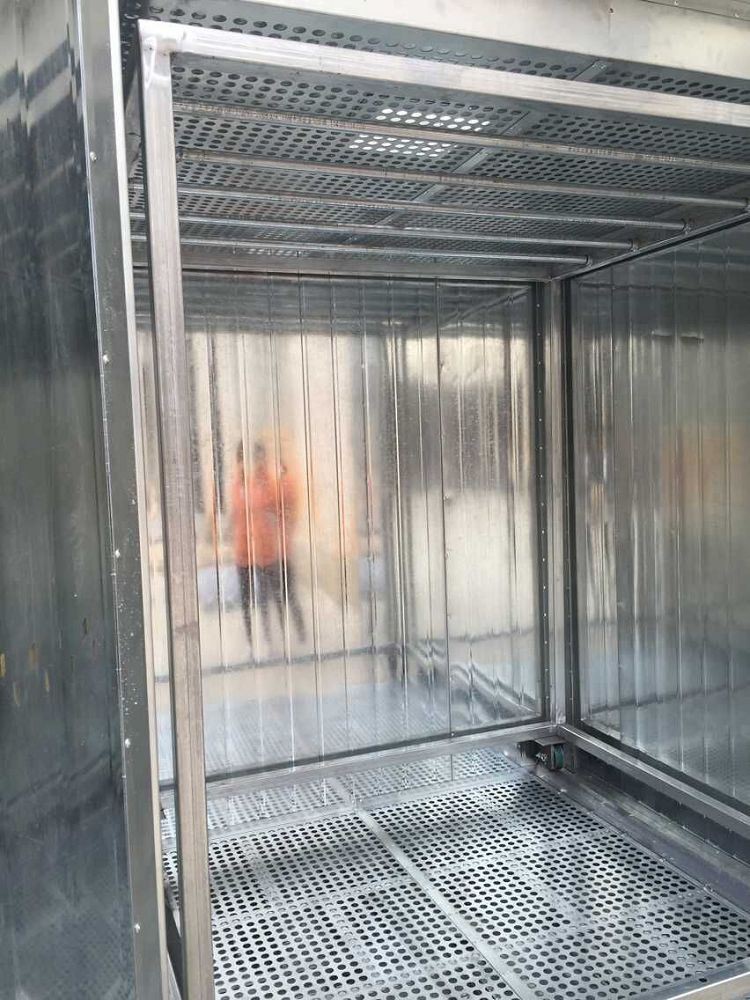

3(001)

Technical Data

Model	COLO-1864
Working dimensions	Width1600 x Height1800 x Depth1400 mm
Overall dimensions	Width1900 x Height2200 x Depth1700 mm
Power supply electric	18kw
Voltage	380V/220V (Custom Voltage Available)
Frequency	50-60hz
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 3-5°C
Temperature max	250° C
Ventilation performance	805-1677m3/h
Motor power	0.75kw
Circulation/ Air flowVertical	Variable through holes on the walls
Transportation	Trolley
Warranty	12 months

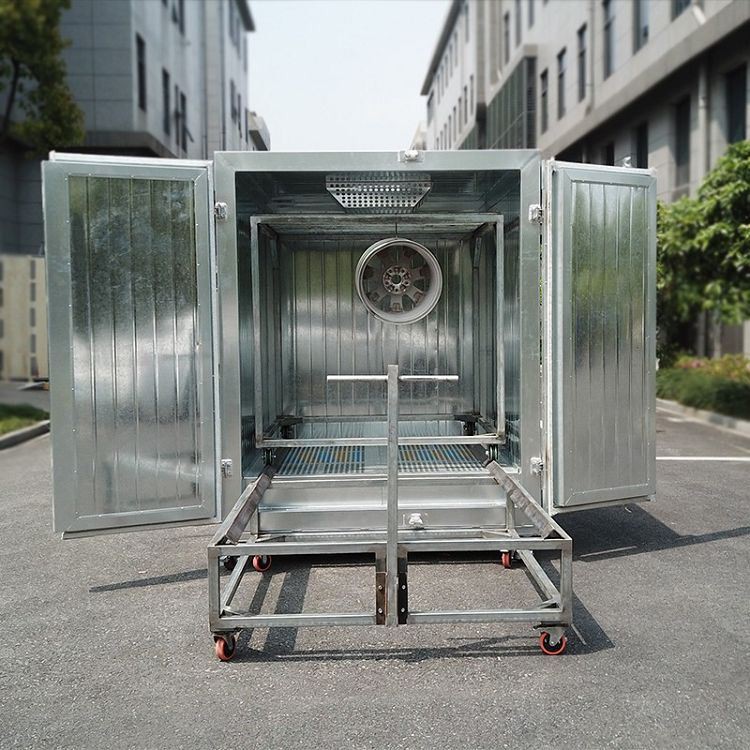

4(001)

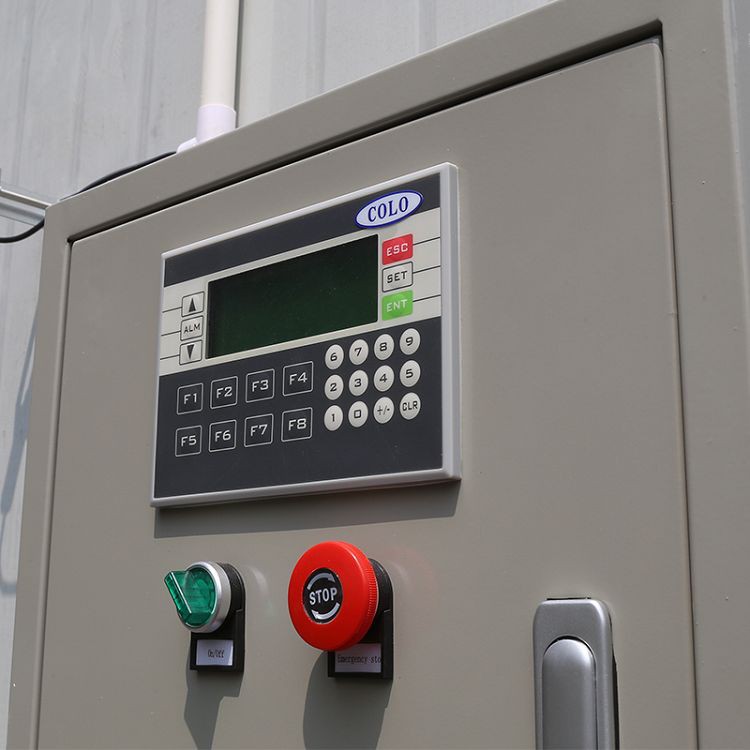

Electric control system

PLC controller

5(001)

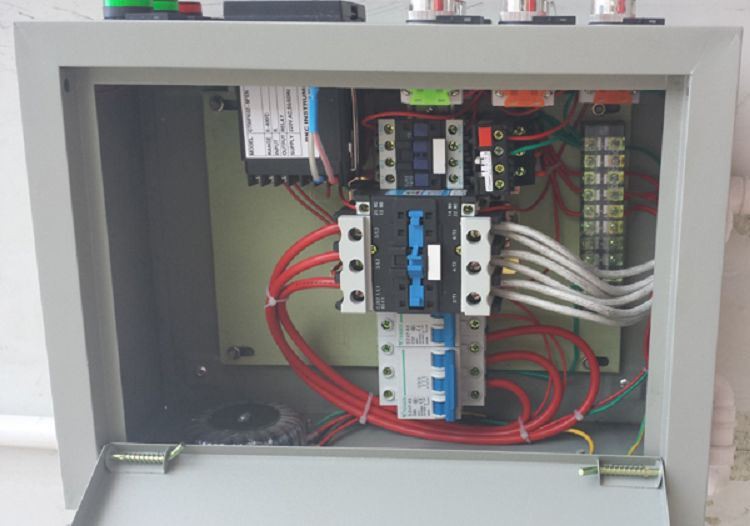

Electric Control Box

6(001)

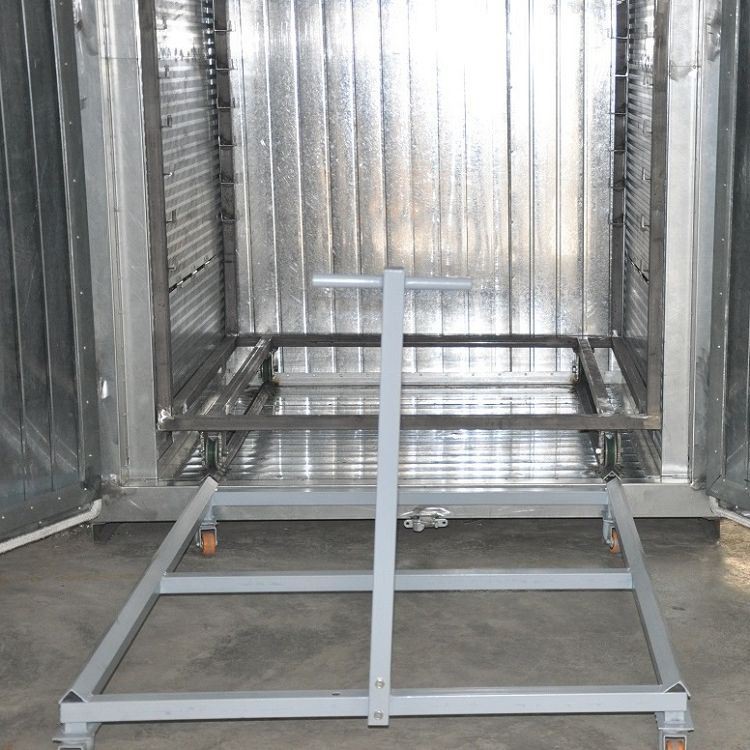

Trolley Car

7(001)

9(001)

11(001)

Certificate

Exclusive COLO Manual Powder Curing Furnace Electric Powder Coating Paint OvenExclusive COLO Manual Powder Curing Furnace Electric Powder Coating Paint Oven
