Quick Details
|
Type:Coating Production Line Substrate:Iron Condition:New Machine Type:Powder Coating Equipment, Coating Equipment Video outgoing-inspection:Provided Machinery Test Report:Provided Marketing Type:Ordinary Product Warranty of core components:1 Year Core Components:PLC, Pump Coating:Powder Coating Place of Origin:Zhejiang, China Brand Name:COLO Voltage:110V/220V Power:1.5kw |
Dimension(L*W*H):56*52*69CM Warranty:1 Year Key Selling Points:Easy to Operate Applicable Industries:Manufacturing Plant Showroom Location:United Kingdom, United States, Colombia Weight (KG):1000 Application:Powder Coating Spraying Guns:Electrostatic Heating system:Electric Recovery:Filters After-sales Service Provided:Online support Pretreatment:sandblasting |

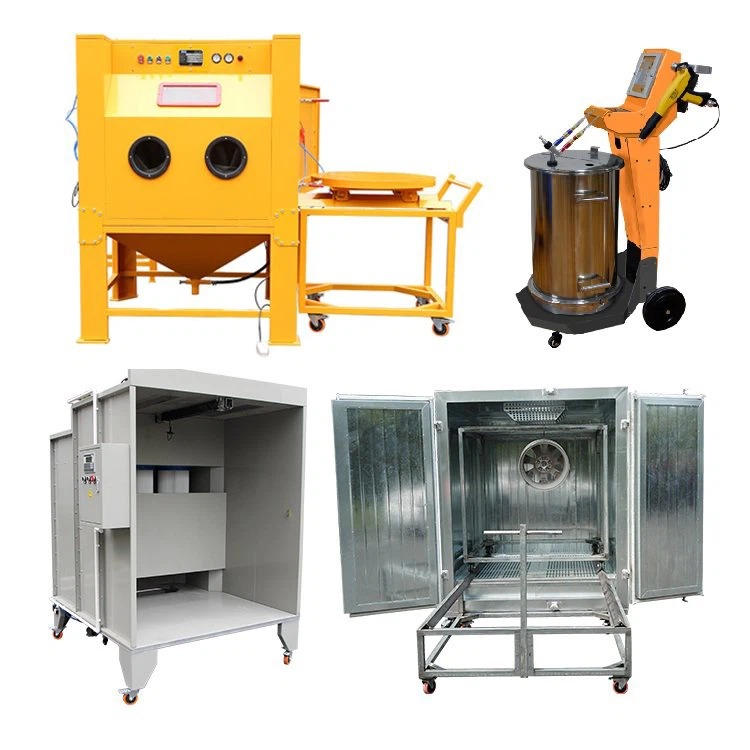

Powder Coating Gun
Powder Coating Booth
Powder Curing Oven
|
Model
|
KF-1212FTA
|
|
Overall Dimension
|
Length1620*Width1250*Height2000mm
|
|
Work Chamber
|
Length1200*Width1200 x Height800mm
|
|
Turntable
|
Diameter 800mm (Maximum Load 200kgs)
|
|
Door Size
|
W750xH780
|
|
Power Supply
|
110V/220V/380V/410V450V(50-60Hz)
|
|
Motor Power
|
0.75kw
|
|
Blasting Gun
|
1 pc, with boron carbide nozzles
|
|
Blasting Gloves
|
A pair of rubber gloves
|
|
Model
|
COLO-S-1517
|
|
Operating Dimensions
|
Width1500 * Depth1000 * Heght1700mm
|
|
Power Supply
|
220V/380V, 3Phase, 50-60HZ
|
|
Fan Power
|
2.2kw
|
|
Filter Count
|
3 pcs, Quick-release Type
|
|
Filter Cleaning
|
Pneumatic
|
|
Control
|
PLC
|
|
Worksize dimension:
|
Wdith1600 x Height1800 x Depth1400mm
|
|
Overall dimensions:
|
Wdith1900 x Height2200 x Depth1700mm
|
|
Power supply
|
Electric/18kw
|
|
Voltage/Frequency
|
110V/220v(50-60hz)
|
|
Warm-up time
|
15-30 min. (180° C)
|
|
Temperature stability
|
< ± 3-5°C
|
|
Temperature
|
Max. 250° C
|
|
Ventilation performance
|
805-1677m3/h
|
|
Fan Power
|
0.75kw
|
|
Circulation/ Air flow
|
Vertical, Variable through holes on the walls
|
